3D Procedural Dungeon Generation

 Download demo project HERE.

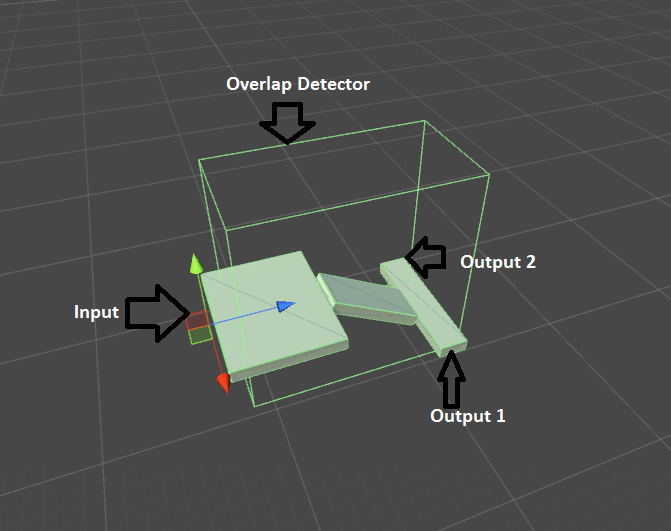

I am working on a hobby project which is an Unity 3D game. I needed to crate 3D procedural map and stumbled upon this post. I decided to implement my own solution based on that approach. First created some module prefabs with an input and multiple outputs. (Yeah they are just boxes. Replace them with your fancy models.)

Here is the script of module prefab:

using System.Collections.Generic;
using System.Linq;
using UnityEngine;

namespace Assets.Scripts
{
    public class Module : MonoBehaviour
    {

        System.Random rnd;
        public GameObject[] Outputs;
        public List<GameObject> AvailableOutputs { get; set; }

        public GameObject GetOutput()
        {
            //Get an output and seal
            var op = AvailableOutputs.ElementAt(rnd.Next(AvailableOutputs.Count));
            AvailableOutputs.Remove(op);
            return op;

        }


        public void Init(int seed)
        {
            rnd = new System.Random(seed);
            AvailableOutputs = Outputs.ToList();
        }

    }
}

These are my test modules:

In dungeon generator script I followed this steps:

1. Select random module
2. Place selected module on some random free output transform position
3. Rotate selected module by using output objects local transform vector.
4. Check if there is any overlap problem. If current module overlaps destroy it and try an other random module on same output.

Dungeon creator script:

using System.Collections.Generic;
using System.Linq;
using UnityEngine;

namespace Assets.Scripts
{
    public class WorldBuilder : MonoBehaviour
    {
        public GameObject[] Modules;
        public int Iterations;
        /// <summary>
        /// Random seed for debugging.
        /// </summary>
        public int Seed;
        System.Random rnd;

        List<GameObject> createdModules, availableModules;
        void Start()
        {
            rnd = new System.Random(Seed);

            BuildWorld();
        }

        void BuildWorld()
        {

            createdModules = new List<GameObject>();
            var initialModule = GameObject.Instantiate(Modules.ElementAt(rnd.Next(Modules.Count())));
            initialModule.GetComponent<Module>().Init(Seed);
            createdModules.Add(initialModule);
            availableModules = createdModules;

            for (int i = 0; i < Iterations; i++)
            {
                var module = availableModules.ElementAt(rnd.Next(availableModules.Count));
                var targetPoint = module.GetComponent<Module>().GetOutput();

                //Shuffle and try every blocks to fit
                var shuffledBlocks = Modules.OrderBy(d => rnd.Next()).ToArray();
                foreach (var sBlock in shuffledBlocks)
                {
                    var candidate = GameObject.Instantiate(sBlock);
                    candidate.GetComponent<Module>().Init(Seed);
                    candidate.gameObject.transform.position = targetPoint.transform.position;
                    candidate.transform.LookAt(targetPoint.transform.position + targetPoint.transform.forward);


                    //Check if there is an any overlapping
                    var bound = candidate.GetComponent<BoxCollider>().bounds;
                    var isSafe = true;
                    foreach (var item in createdModules)
                    {
                        if (bound.Intersects(item.GetComponent<BoxCollider>().bounds))
                        {
                            //Try another module
                            GameObject.Destroy(candidate);
                            isSafe = false;
                            break;
                        }
                    }

                    if (isSafe)
                    {
                        //Module connected safely
                        createdModules.Add(candidate);
                        break;
                    }
                }

                availableModules = createdModules.Where(d => d.GetComponent<Module>().AvailableOutputs.Any()).ToList();
                if (!availableModules.Any())
                {
                    //No availabel output on any modules. Stop the proccess
                    break;
                }
            }

            foreach (var item in createdModules)
            {

                //Disable overlap test colliders
                item.GetComponent<BoxCollider>().enabled = false;
            }

        }

    }


}

Results in different steps:

And here how it works in my game:

 Download demo project HERE.

Building An Artifical Neurol Network With .Net and C#

 Download demo source code HERE.

Terminator, matrix, i robot were all great movies because artifical intelligance is so cool concept. That's why humanity working hard to build a real skynet. Artifical neurol networks is a step forward  on this purpose. It is a mathematical model of biological neurol networks. Unlike many humans, they can learn by experiance. Neurol network models can be trained by samples. A network is made of following structures.

1. Input neurons: An input data for nerurol network to think about it.
2. Neuron: A math function  node that calculates inputs and genrates an output for other neurons. Output value is always must be a decimal between 0 and 1. Thats why functions like logistic or softmax usally prefered. Name of function that choosen for nerurons called "Activation Function".
3. Hidden layers: Contains neurons that process input data. Mathematical magic happens here.
4. Weights: Connections between neurons. They are just simple decimal numbers that sets characteristics of neurol network.
5. Bias:  Some  value between 0 to 1 that added to neurons output. That prevents 0 valued outputs from neurons and keep neurons alive. Most boring thing in neurol networks.
6. Output neurons: Final output and conclusion of your network.

Here is a visual represantation of ANN:



Artificial neural network is an application of mathematics so MATH IS THE MOST IMPORTANT PART! Let's take look at it step by step using graphic above. For each neuron in the hidden layers and output layer calculate output signals by following formula:

K is logistic sigmoid activation function of our neurons

g_i is a vector of  other connected neuron outputs and w_i is vector of weight connections. Output signal function for each neuron is:

Every input data must be normalized to floating point between 0 to 1. That will also generate every neural  signal in  range of 0 to 1. This is the scaling equalization for input data:

  Here is an example of output signal calculation for a neuron called N1:

Output signal for N1=K(g1*w1+g2*w2+g3*w3)

Another example for output neuron called O1:

Output signal for O1=K(N1*w1+N2*2w+N3*w3+N4*w4)

We will get back to math later. That is enough for now. On this blog I will try to build an artificial neural network with .net and c#  because there are enough python examples already. Also, I will try to do it on object oriented approach. It is simple to write it just using matrix calculations but I think this way is more easy to understand and maintain. Here is my object structure:

 Layer class is a collection of neurons.

 public class Layer
        {
            public Neuron[] Neurons { get; set; }
        }

Here is neuron class. We will breakdown all the details later.

public enum NeuronTypes
    {
        Input,
        Hidden,
        Output
    }

    public class Neuron
    {
        public List<Synapse> Inputs { get; set; }
        public List<Synapse> Outputs { get; set; }
        public double Output { get; set; }
        public double TargetOutput { get; set; }
        public double Delta { get; set; }
        public double Bias { get; set; }
        int? maxInput { get; set; }
        public NeuronTypes NeuronType { get; set; }

        public Neuron(NeuronTypes neuronType, int? maxInput)
        {
            this.NeuronType = neuronType;
            this.maxInput = maxInput;
            this.Inputs = new List<Synapse>();
            this.Outputs = new List<Synapse>();
        }

        public bool AcceptConnection
        {
            get
            {
                return !(NeuronType == NeuronTypes.Hidden && maxInput.HasValue && Inputs.Count > maxInput);

            }
        }

        public double InputSignal
        {
            get
            {
                return Inputs.Sum(d => d.Weight * (d.Source.Output + Bias));
            }
        }

        public double BackwardSignal()
        {
            if (Outputs.Any())
            {
                Delta = Outputs.Sum(d => d.Target.Delta * d.Weight) * activatePrime(Output);
            }
            else
            {
                Delta = (Output - TargetOutput) * activatePrime(Output);
            }

            return Delta + Bias;
        }

        public void AdjustWeights(double learnRate, double momentum)
        {
            if (Inputs.Any())
            {
                foreach (var synp in Inputs)
                {

                    var adjustDelta = Delta * synp.Source.Output;
                    synp.Weight -= learnRate * adjustDelta + synp.PreDelta * momentum;
                    synp.PreDelta = adjustDelta;

                }
            }
        }

        public double ForwardSignal()
        {
            Output = activate(InputSignal);
            return Output;
        }

        double activatePrime(double x)
        {
            return x * (1 - x);
        }

        double activate(double x)
        {
            return 1 / (1 + Math.Pow(Math.E, -x));
        }
    }

Synapse class for connections between neurons.

public class Synapse
    {
        public double Weight { get; set; }
        public Neuron Target { get; set; }
        public Neuron Source { get; set; }
        public double PreDelta { get; set; }
        public double Gradient { get; set; }
        public Synapse(double weight, Neuron target, Neuron source)
        {
            Weight = weight;
            Target = target;
            Source = source;
        }

    }

And the NeuralNetwork class, the maestro that pulls them together.

public class NeuralNetwork
    {
        public double LearnRate = .5;
        public double Momentum = .3;
        public List<Layer> Layers { get; private set; }
        int? maxNeuronConnection;
        public int? Seed { get; set; }
        public NeuralNetwork(int inputs, int[] hiddenLayers, int outputs, int? maxNeuronConnection = null, int? seed = null)
        {
            this.Seed = seed;
            this.maxNeuronConnection = maxNeuronConnection;
            this.Layers = new List<Layer>();
            buildLayer(inputs, NeuronTypes.Input);
            for (int i = 0; i < hiddenLayers.Length; i++)
            {
                buildLayer(hiddenLayers[i], NeuronTypes.Hidden);
            }
            buildLayer(outputs, NeuronTypes.Output);
            InitSnypes();

        }

        void buildLayer(int nodeSize, NeuronTypes neuronType)
        {
            var layer = new Layer();
            var nodeBuilder = new List<Neuron>();
            for (int i = 0; i < nodeSize; i++)
            {
                nodeBuilder.Add(new Neuron(neuronType, maxNeuronConnection));
            }
            layer.Neurons = nodeBuilder.ToArray();
            Layers.Add(layer);
        }

        private void InitSnypes()
        {
            var rnd = Seed.HasValue ? new Random(Seed.Value) : new Random();

            for (int i = 0; i < Layers.Count - 1; i++)
            {
                var layer = Layers[i];
                var nextLayer = Layers[i + 1];
                foreach (var node in layer.Neurons)
                {
                    node.Bias = 0.1 * rnd.NextDouble();
                    foreach (var nNode in nextLayer.Neurons)
                    {
                        if (!nNode.AcceptConnection) continue;
                        var snypse = new Synapse(rnd.NextDouble(), nNode, node);
                        node.Outputs.Add(snypse);
                        nNode.Inputs.Add(snypse);
                    }
                }
            }

        }

        public double GlobalError
        {
            get
            {
                return Math.Round(Layers.Last().Neurons.Sum(d => Math.Pow(d.TargetOutput - d.Output, 2) / 2), 4);
            }
        }

        public void BackPropagation()
        {
            for (int i = Layers.Count - 1; i > 0; i--)
            {
                var layer = Layers[i];
                foreach (var node in layer.Neurons)
                {
                    node.BackwardSignal();
                }
            }
            for (int i = Layers.Count - 1; i >= 1; i--)
            {
                var layer = Layers[i];
                foreach (var node in layer.Neurons)
                {
                    node.AdjustWeights(LearnRate, Momentum);
                }
            }
        }

        public double[] Train(double[] _input, double[] _outputs)
        {
            if (_outputs.Count() != Layers.Last().Neurons.Count() || _input.Any(d => d < 0 || d > 1) || _outputs.Any(d => d < 0 || d > 1))
                throw new ArgumentException();

            var outputs = Layers.Last().Neurons;
            for (int i = 0; i < _outputs.Length; i++)
            {
                outputs[i].TargetOutput = _outputs[i];
            }

            var result = FeedForward(_input);

            BackPropagation();
            return result;
        }

        public double[] FeedForward(double[] _input)
        {
            if (_input.Count() != Layers.First().Neurons.Count())
                throw new ArgumentException();


            var InputLayer = Layers.First().Neurons;
            for (int i = 0; i < _input.Length; i++)
            {
                InputLayer[i].Output = _input[i];
            }

            for (int i = 1; i < Layers.Count; i++)
            {
                var layer = Layers[i];
                foreach (var node in layer.Neurons)
                {
                    node.ForwardSignal();
                }
            }

            return Layers.Last().Neurons.Select(d => d.Output).ToArray();
        }
    }

Now lets take a look how this thing works. My simple goal is to give my network 2 inputs and expect average of them as output result. As I said before input data must be scaled to 0 to1 range. Of course I can simply calculate it like x=(a+b)/2. The point is a neural network can learn (almost) ANY function. It can LEARN any pattern. An ANN can be trained. For many cases this way is more effective than traditional methods. This approch works very well in vast area of applications like image recognition and processing, data classification, data prediction and of course artificial intelligence. Here is a console application sample:

class ANN
    {
        static void Main(string[] args)
        {
            var network = new NeuralNetwork(2, new int[] { 4 }, 1);
            var inputData = new double[] { .3, .5 };
            var output = network.FeedForward(inputData);
            Console.Write("Inputs: {0} {1}  Output:{2} ", inputData[0], inputData[1],output[0]);
            Console.ReadLine();
        }
    }

 new NeuralNetwork(2, new int[] { 4 }, 1);  this means build neural network with 2 input neurons, 1 hidden layer with 4 neurons and 1 output neuron. .3 and .5 values sent towards network to generate an output signal by using FeedForward function. The result is:

Different values on every run:

What does it mean? We gave 0.3 and 0.5 as input data. Shouldn't we get 0.4 as an average of them? Yes computer science is modern sorcery but it is not that easy. We need to train our little ANN. We must teach what "average"  means by showing samples over and over again.  Before the learning part lets take a look at our artificial neural network deeper. What happened to data in ANN. On constructor method, layers built and neurons created in buildLayer. After that InitSnypes method created synapse connection layer by layer with some random value. That's why output result is different on each run. Every different structure generates a different output with same input. FeedForward calculates output signal using that connection values. What if there is an exact synapse connection build that generate average of my inputs as output. There are countless random combinations of these synapse weight values. How can we find the correct one? There is a mathe-magical spell to do this. It is called backpropagation. It is a common "supervised learning method" to train  ANN's. An application of "Machine (deep) Learning". After output signal generated, if desired output is known we can calculate an error value and adjust the neural connection weights by backpropogation technique. Next time error should be smaller and smaller. After enough training error value will be ignorable. Let's train! Here is a windows form example.

public partial class Form1 : Form
    {
        public NeuralNetwork network;
        public List<double[]> trainingData;
        Random rnd;
        int trainedTimes;
        public Form1()
        {
            InitializeComponent();

            //For debugging
            int Seed = 1923;

            // 2 input neurons 2 hidden layers with 3 and 2 neurons and 1 outpu neuron
            network = new NeuralNetwork(2, new int[] { 3, 3 }, 1, null, Seed);

            //Generate Random Training Data
            trainingData = new List<double[]>();
            rnd = new Random(Seed);

            var trainingDataSize = 75;
            for (int i = 0; i < trainingDataSize; i++)
            {
                var input1 = Math.Round(rnd.NextDouble(), 2); //input 1
                var input2 = Math.Round(rnd.NextDouble(), 2); // input 2
                var output = (input1+input2)/2 ; // output as avarage of inputs
                trainingData.Add(new double[] { input1, input2, output });// Training data set
                chart1.Series[0].Points.AddXY(i, output);
            }
        }

        public void Train(int times)
        {
            //Train network x0 times
            for (int i = 0; i < times; i++)
            {
                //shuffle list for better training
                var  shuffledTrainingData = trainingData.OrderBy(d => rnd.Next()).ToList();
                List<double> errors = new List<double>();
                foreach (var item in shuffledTrainingData)
                {
                    var inputs = new double[] { item[0], item[1] };
                    var output = new double[] { item[2] };

                    //Train current set
                    network.Train(inputs, output);

                    errors.Add(network.GlobalError);
                }

            }
            chart1.Series[1].Points.Clear();
            for (int i = 0; i < trainingData.Count; i++)
            {
                var set = trainingData[i];

                chart1.Series[1].Points.AddXY(i, network.FeedForward(new double[] { set[0], set[1] })[0]);
            }
            trainedTimes += times;
            TrainCounterlbl.Text = string.Format("Trained {0} times", trainedTimes);
        }

        private void Trainx1_Click(object sender, EventArgs e)
        {
            Train(1);
        }

        private void Trainx50_Click(object sender, EventArgs e)
        {
            Train(50);
        }

        private void Trainx500_Click(object sender, EventArgs e)
        {
            Train(500);
        }

        private void TestBtn_Click(object sender, EventArgs e)
        {
            var testData = new double[] { rnd.NextDouble(), rnd.NextDouble() };
            var result = network.FeedForward(testData)[0];
            MessageBox.Show(string.Format("Input 1:{0} {4} Input 2:{1} {4} Expected:{3}  Result:{2} {4}",
                format(testData[0]),
                format(testData[1]),
                format(result),
                format((testData[0]+ testData[1])/2),
                Environment.NewLine));
        }
        string format(double val)
        {
            return val.ToString("0.000");
        }
    }

Neural network has multiple hidden layers with 3 neurons each. 75 samples of random values generated at form constructor and stored in "trainingData".  Here is the output chart of  "trainingData".

When I press test data my untrained ANN thinks average of 0.316 and 0.339 is equals to 0.781

Press "Train X1" button to study every samples for one time and here is the result:

It is still too far from expected result. Yellow "ANN" line of chart is actual response of our network for each input set in the training data. They are all almost same ~0.5. We must train more but Let's take a look what happened when we hit train button. Train method of network applies backpropagation algorithm. First FeedForward function generates an output signal. BackPropagation method calculates error value by using expected output and actual signal output. Feeds these error values back to input neurons using derivative of activation functions. That process helps to find which weight connections are most responsible of the error. That method is called "Gradient Descent". Let's take a look at math of the process. Gradient descent method needs an error calculation function. Squared error function is most common:

For each synapse connected to output neuron, backward signal can be calculated with following formula:

Net backward error signal for previous neuron can be calculated with following partial derivative respect to a weight.

Now let's inspect calculation of each term. The last term is error signal output of through a synapse connection.

For output neuron next term is simply actual output - expected output . (Yes that is why there is a 1/2 )

For other neurons that calculation depends on derivative of activation function.

After all backward signals calculated we need to adjust synapse weights for better results. α here is called momentum. It is an adjustment value for faster learning that represents previous value

In my code BackwardSignal  applies partial derivative chain:

public double BackwardSignal()
        {
            if (Outputs.Any())
            {
                Delta = Outputs.Sum(d => d.Target.Delta * d.Weight) * activatePrime(Output);
            }
            else
            {
                Delta = (Output - TargetOutput) * activatePrime(Output);
            }

            return Delta + Bias;
        }

Then adjustment of weights at

public void AdjustWeights(double learnRate, double momentum)
        {
            if (Inputs.Any())
            {
                foreach (var synp in Inputs)
                {

                    var adjustDelta = Delta * synp.Source.Output;
                    synp.Weight -= learnRate * adjustDelta + synp.PreDelta * momentum;
                    synp.PreDelta = adjustDelta;

                }
            }
        }

Back to demo application. Remember our application tries to find average of two input values. More we train better results we get. After training 50 times over artificial neural network, results begins to fit expected values.

100 training times later ANN fits far better.

15200 times later that thing knows what its doing.

 Download demo source code HERE.
